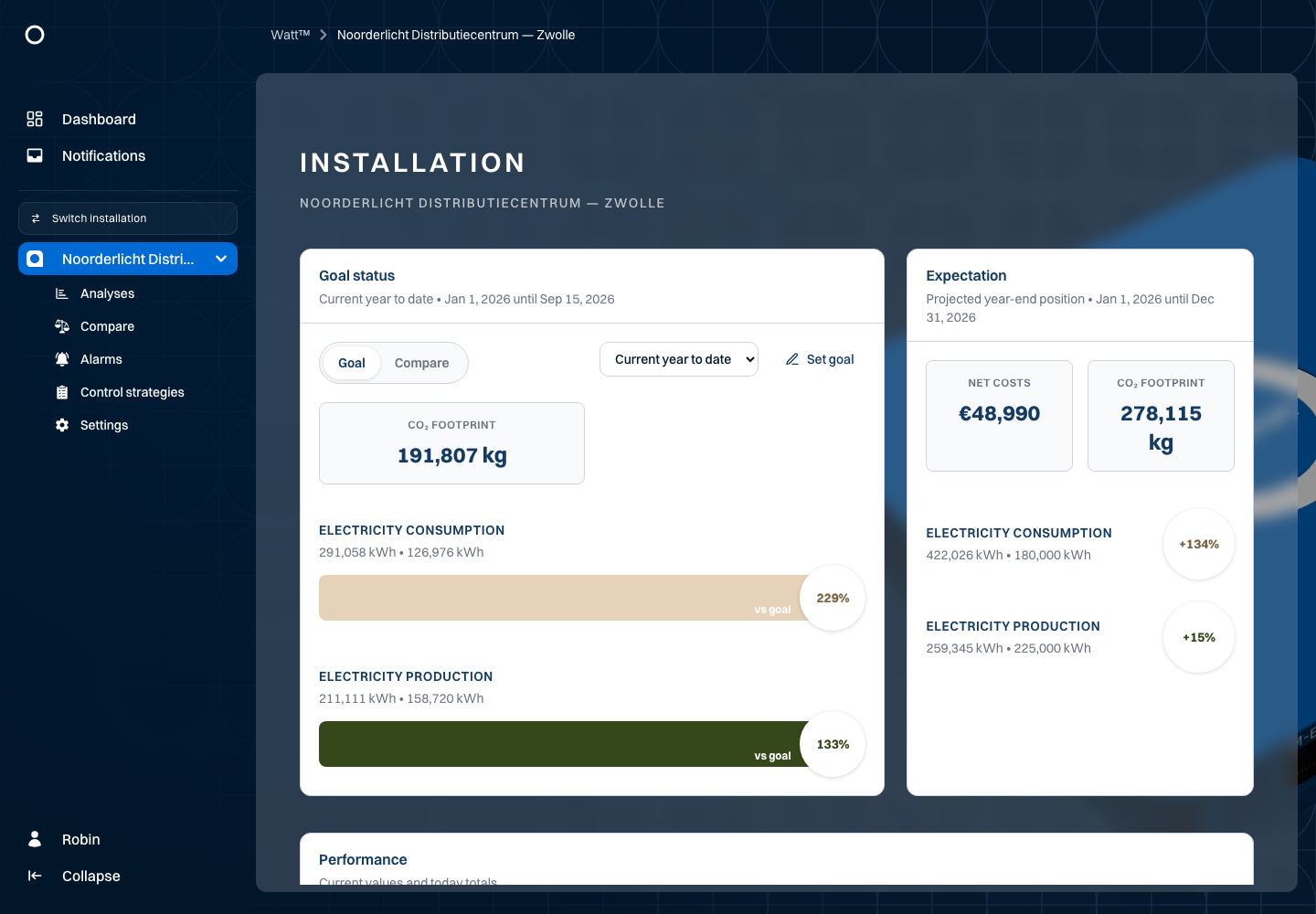

Status, performance and meter readings

Use the installation page to review current values, daily totals, performance and meter readings. The example data below belongs to Noorderlicht Distributiecentrum — Zwolle.

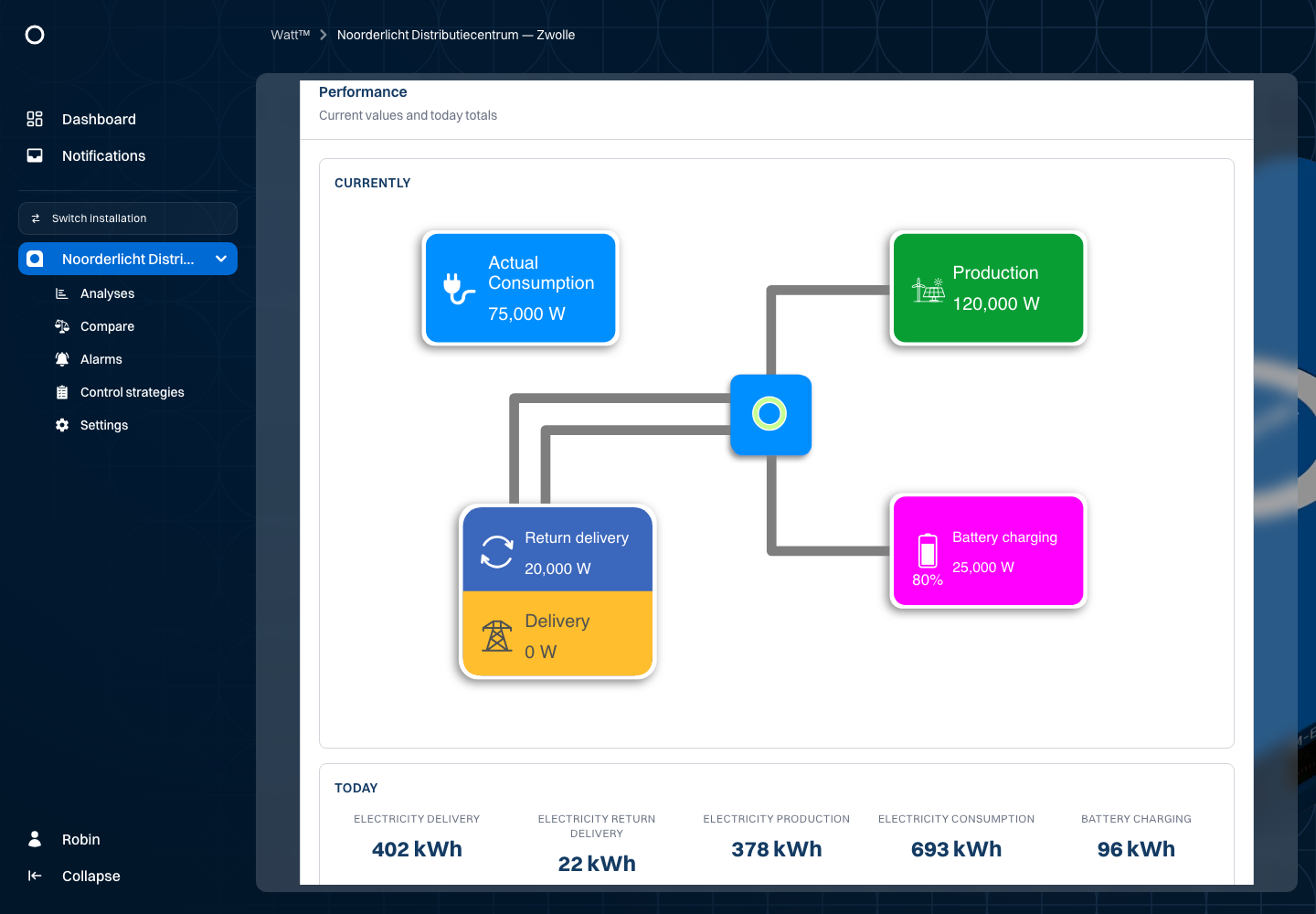

Now and today

Current values describe a measurement time. Daily totals describe a period. Power in kW and energy in kWh are different quantities. Around 12:30, the example installation produces approximately 120 kW. Consumption uses 75 kW, battery charging uses 25 kW and approximately 20 kW is exported.

Visible sections follow the location's measurement capabilities. The Groningen office has no battery. The Meppel depot has no reliable current values during its connection fault; historical data remains a separate source.

Performance against a target

Select the available target or comparison view and review the period. Targets and reference values are installation settings. Check the period before interpreting a difference.

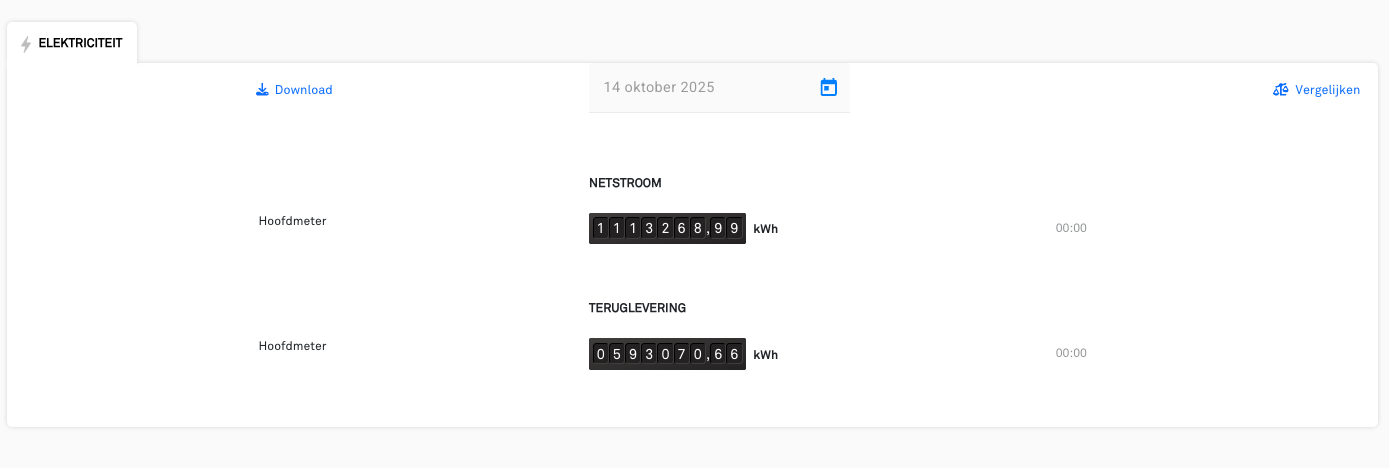

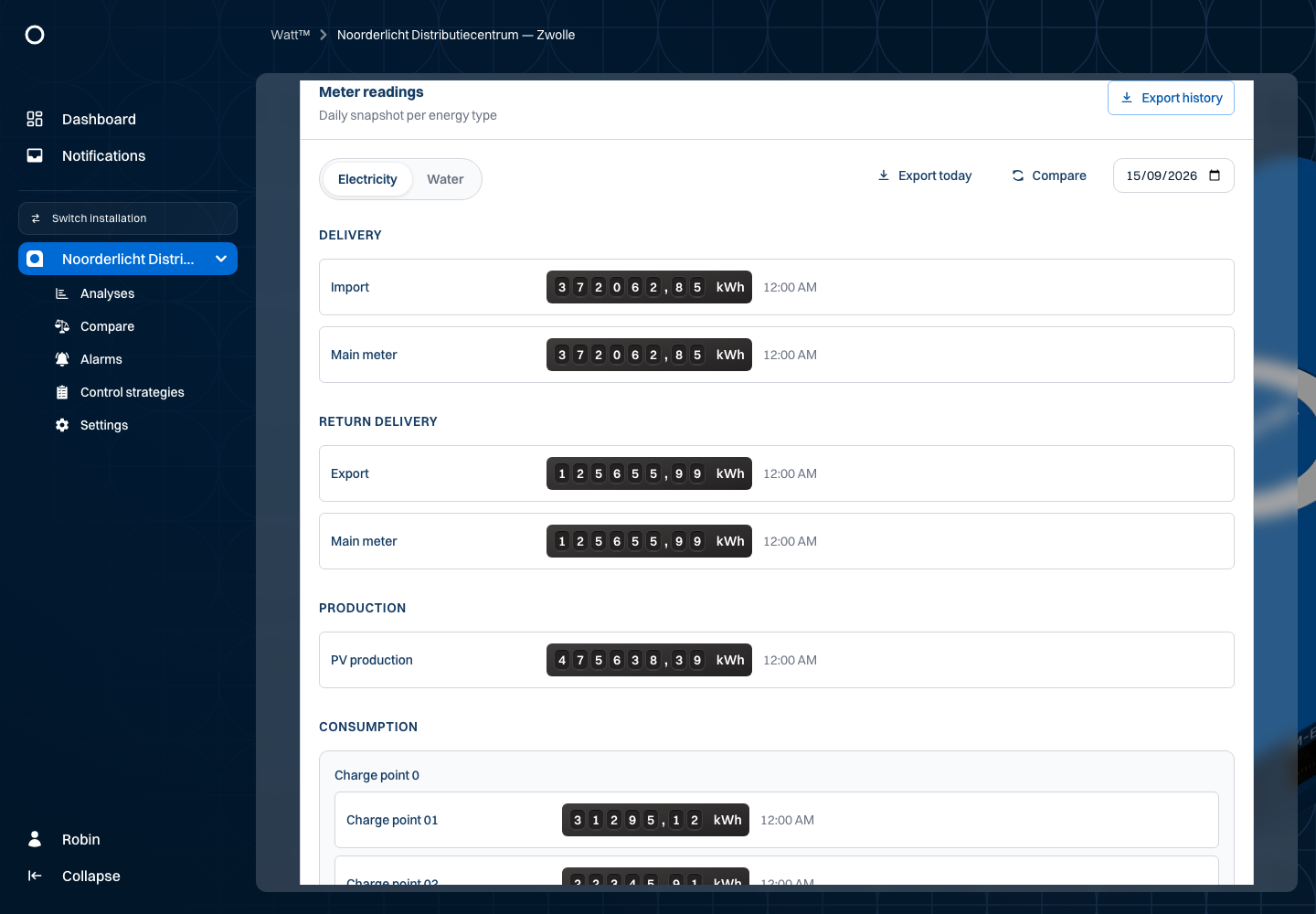

Meter readings

Open Meter readings, select a date and compare two snapshots where available. Check the measurement point, unit and measurement date. Use the download control to save the selected data. A cumulative reading is not average power. Only treat a meter as MID-certified when that designation is shown for that meter.

Continue with Analyses to investigate historical charts.
