Analyses: charts and views
Use Analyses to investigate energy balance, grid load, battery, solar, charging site and heat pump for one installation. For example, open Noorderlicht Distributiecentrum — Zwolle. All charts on the page share the same period.
- Open Analyses in the navigation for the selected installation.

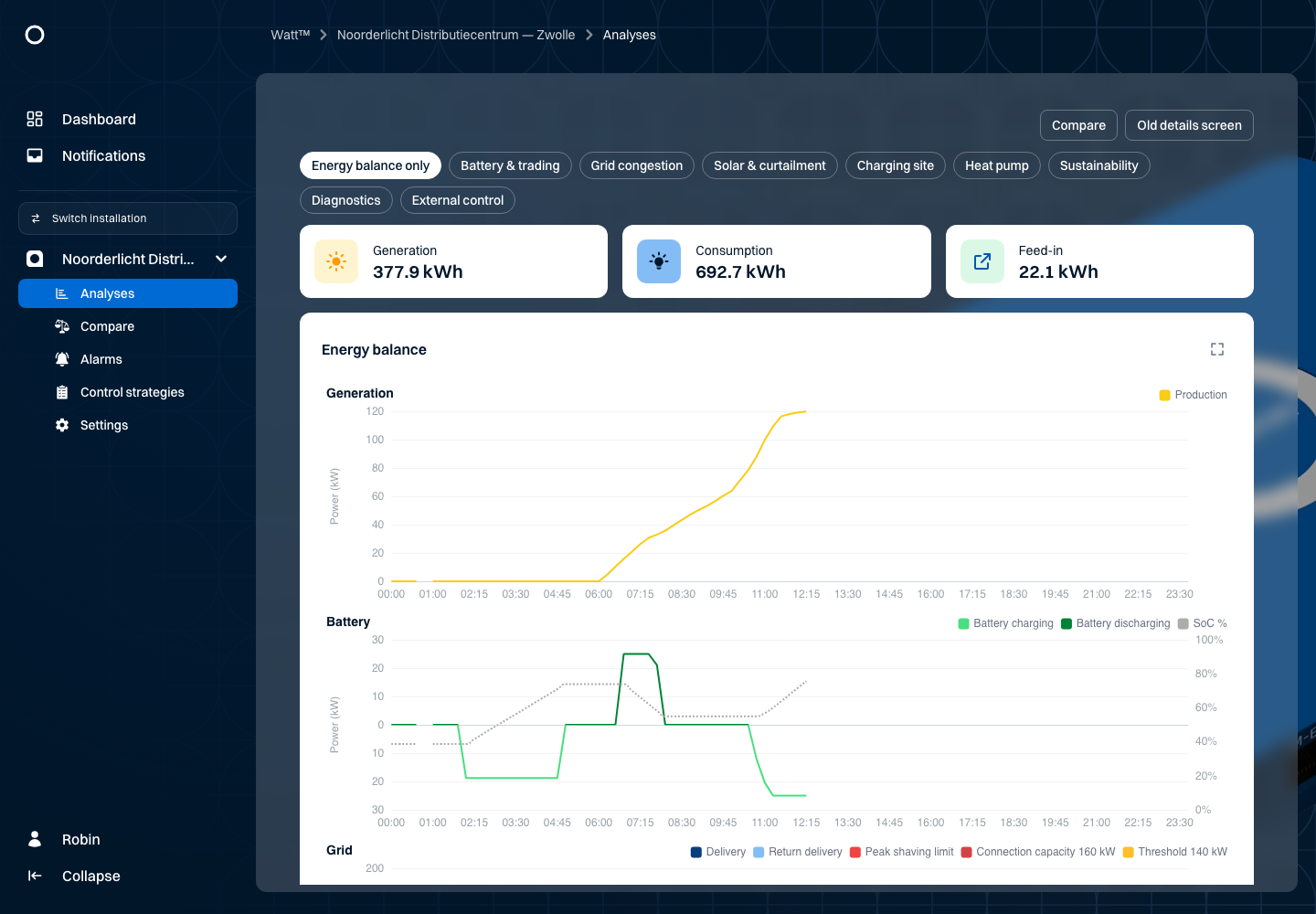

- Choose a View (tab/chip at the top) or start from Energy balance only.
- Optionally add charts with Add chart.
- Open a chart page below for explanation, scenario and screenshot.
At the top right: Compare or the Old details screen for measurement-point export. DIY charts belong to a separate admin view and are not covered here.
Views
| View | Purpose |
|---|---|
| Energy balance only | Starting point: only the fixed energy balance. |
| Battery & trading | Price-driven dispatch and state of charge. |
| Grid congestion | Grid load, phases, peaks and control signals. |
| Solar & curtailment | What PV limits held back. |
| Charging site | Charging, utilisation and grid load. |
| Heat pump | Control, energy signature and grid impact. |
| Sustainability | Origin of electricity used (energy mix). |
| Diagnostics | Control signals next to grid and battery. |
| External control | Control signals next to grid load. |
A view only shows charts this installation can display. Grey in the picker means for example No battery or Dynamic prices are off.
Which chart in which view
| Chart | View(s) or add manually |
|---|---|
| Energy balance | Energy balance only |
| Trading | Battery & trading |
| Peak shaving | Battery & trading, Grid congestion, Heat pump |
| State of charge | Battery & trading, Diagnostics |
| Grid load with battery | via Add chart |
| Grid load | Grid congestion, Charging site, Heat pump, Diagnostics, External control |
| Phase balance | Grid congestion, Heat pump |
| Energy mix | Sustainability |
| Curtailment | Solar & curtailment |
| Curtailment per hour | Solar & curtailment |
| Curtailment duration curve | via Add chart |
| Curtailment cumulative | Solar & curtailment |
| Charging site overview | Charging site |
| Charging site | via Add chart |
| Charging per hour | Charging site |
| Use per charge point | Charging site |
| Heat pump | Heat pump |
| Heat pump energy signature | Heat pump |
| Control signals | Diagnostics, External control |
