Envi.Base in distribution cabinet
The Envi.Baseenvi.base De energiecontroller van Envitron die apparaten uitleest, aanstuurt en data opslaat achter de hoofdaansluiting. is supplied as standard in a box containing a power supply and connection cables. Envitron also supplies Envi.Basesenvi.base De energiecontroller van Envitron die apparaten uitleest, aanstuurt en data opslaat achter de hoofdaansluiting. pre-mounted in an IP65 distribution cabinet with transparent cover for fast and robust installation.
The standard distribution cabinet is 360x270mm and can be directly connected to a single-phase 230Vac supply with a maximum fuse of 16A. The distribution cabinet is supplied with four steel mounting brackets. Model 1 is without a switch and Model 2 is with a switch. Both distribution cabinets are equipped with a 24Vdc terminal block strip to which, for example, a Waveshare or other device can also be connected.

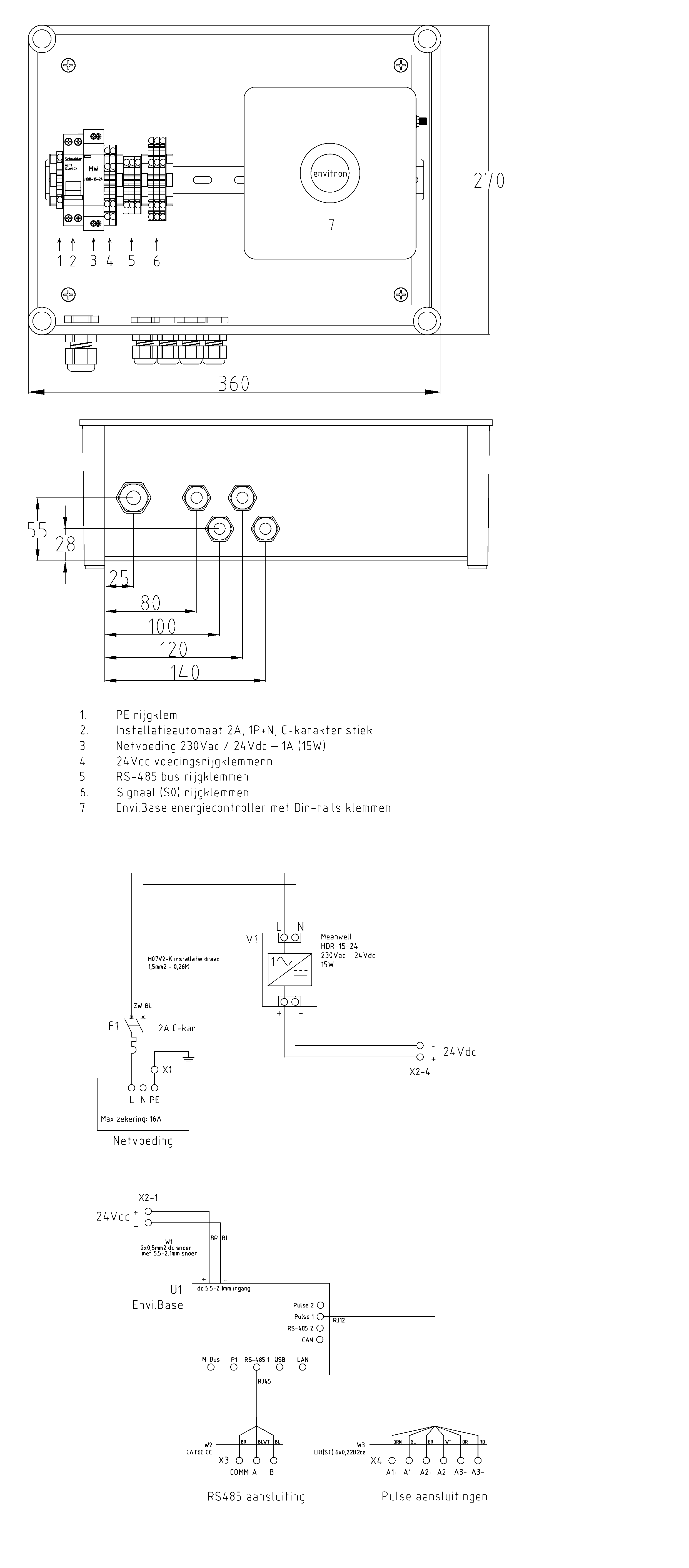

Model 1
360x270mm distribution cabinet with RS485 terminal blocks and pulse terminal blocks

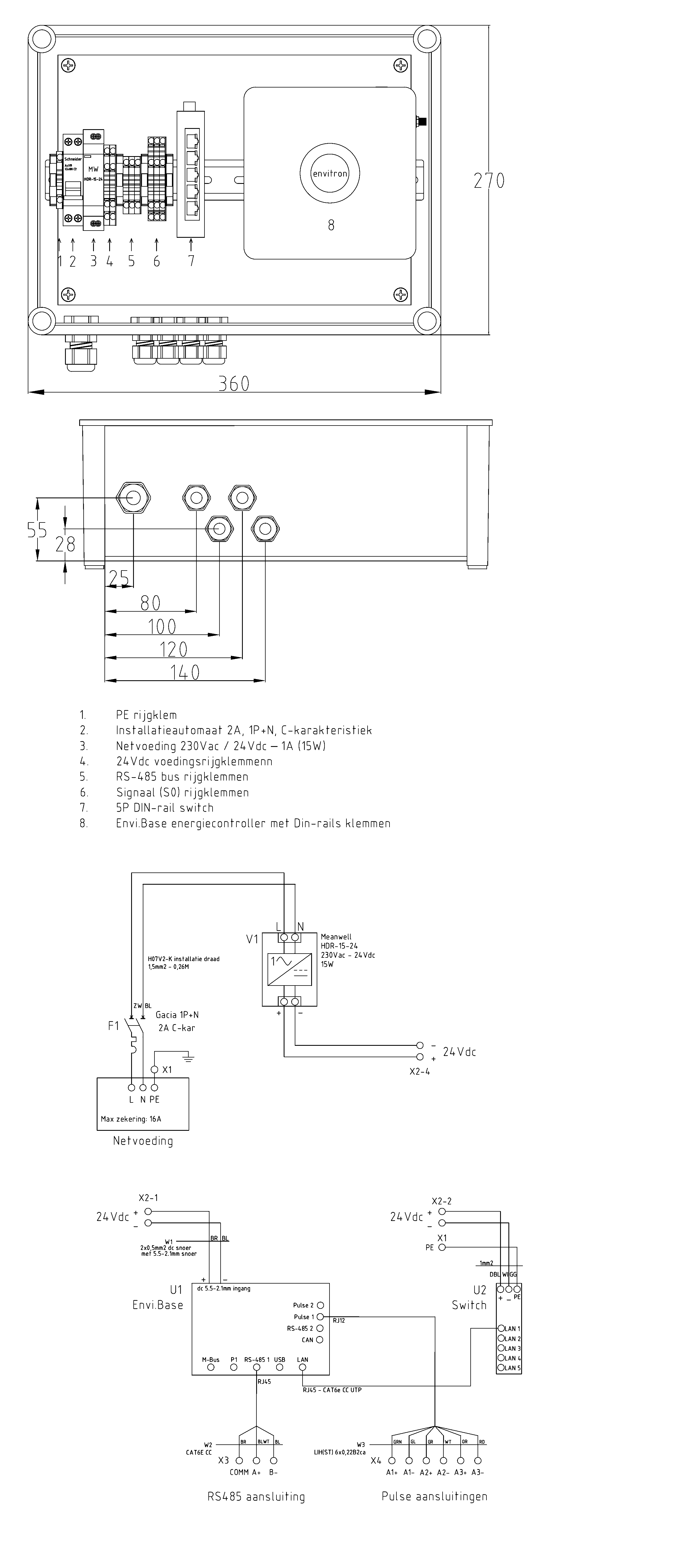

Model 2 - with switch
360×270mm distribution cabinet with RS485 terminal blocks, pulse terminal blocks and integrated 5-port DIN rail switch
